ELP 48MP Fast Autofocus USB Camera Module with 70degree No Distortion Lens for Computer Mini UVC USB2.0 Industrial Webcam Board 8000 * 6000 USB with Camera for Laptop PC Raspberry pi Jetson Nano
USB Camera Module
$40.80
Prijs met korting
$40.80
Normale prijs
Ga direct naar de productinformatie
ELP 48MP Fast Autofocus USB Camera Module with 70degree No Distortion Lens for Computer Mini UVC USB2.0 Industrial Webcam Board 8000 * 6000 USB with Camera for Laptop PC Raspberry pi Jetson Nano
$40.80
Prijs met korting
$40.80
Normale prijs

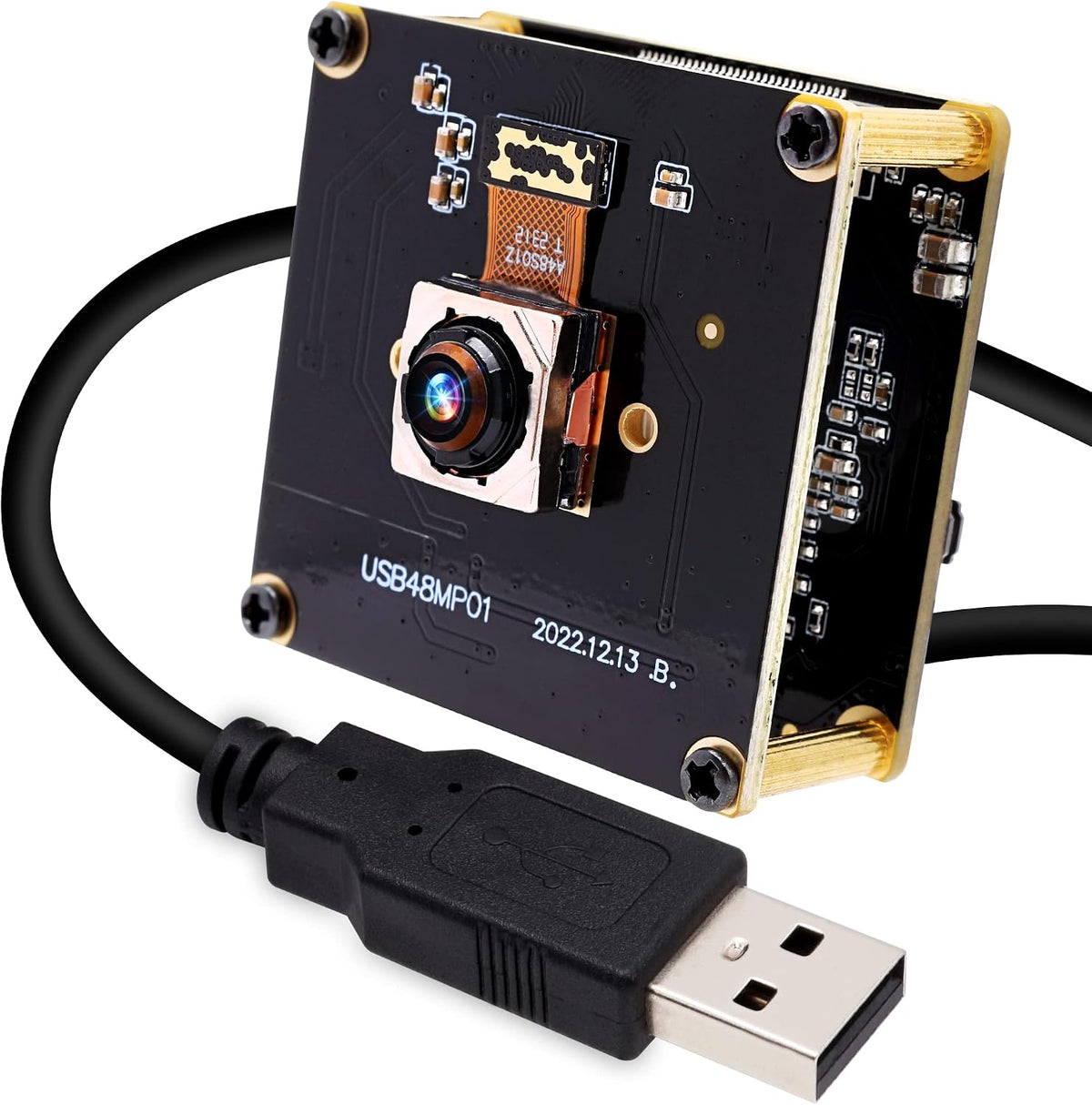

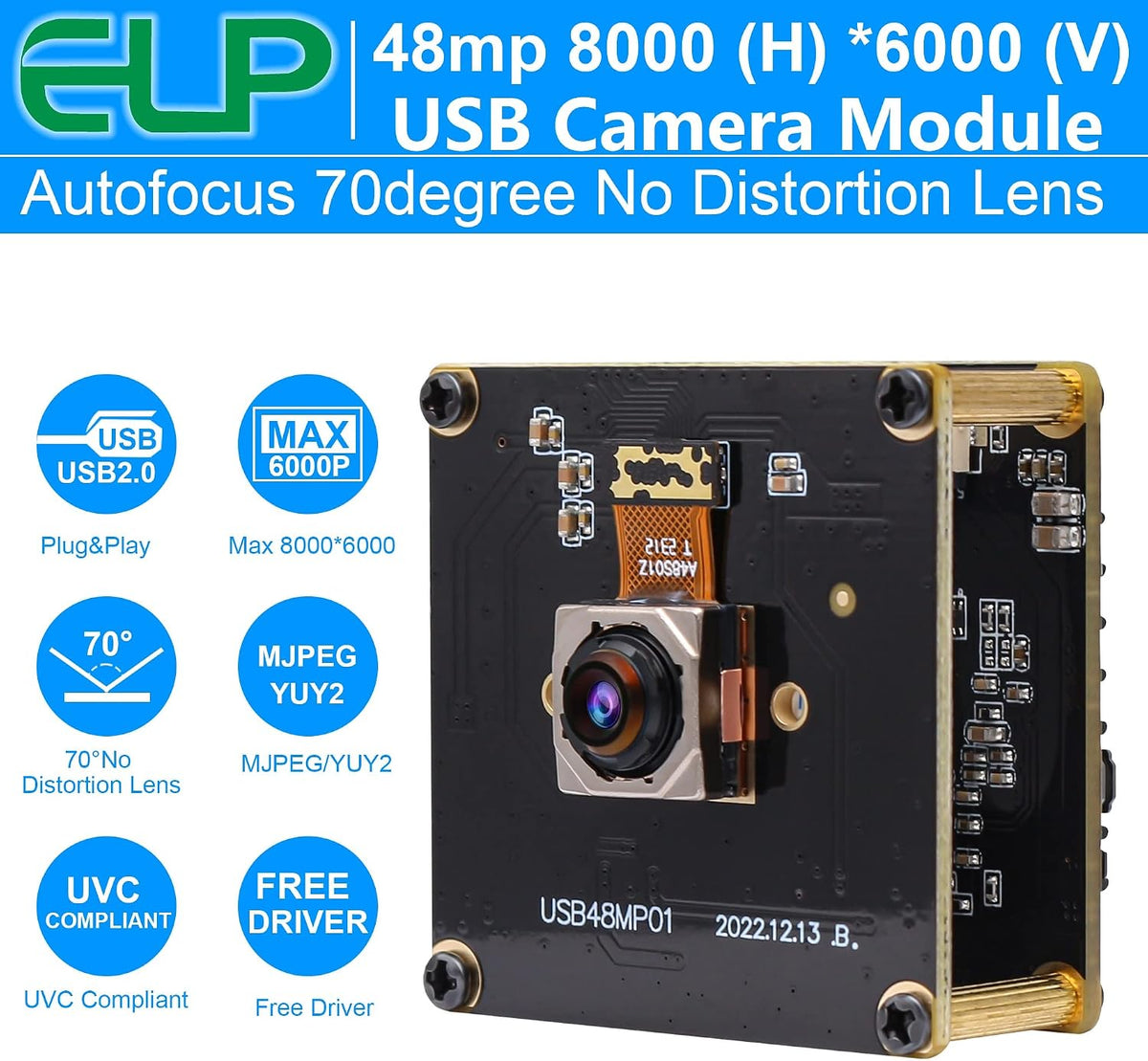

ELP 48mp Autofocus USB PC Camera Module 8000*6000P 8K Mini PC Camera with 70degree No distortion lens UVC USB2.0 Video Webcam Board for Computer
ELP-USB48MP01-AF70 (HFOV about 70degree, DHOV about 82degree)
- High Resolution 48MP Autofocus USB Camera Module
- Based on big size 1/2â S5KGM1ST03-FG9 image sensor, Auto Focus, USB 2.0 UVC compliant camera. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera board. Fast auto focus about 200ms, quickly shoot the images or record videos with super Image reality, real color reproduction. Its ultra 8000*6000 resolution can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required, small outline and thin profile can be embedded in most machines.

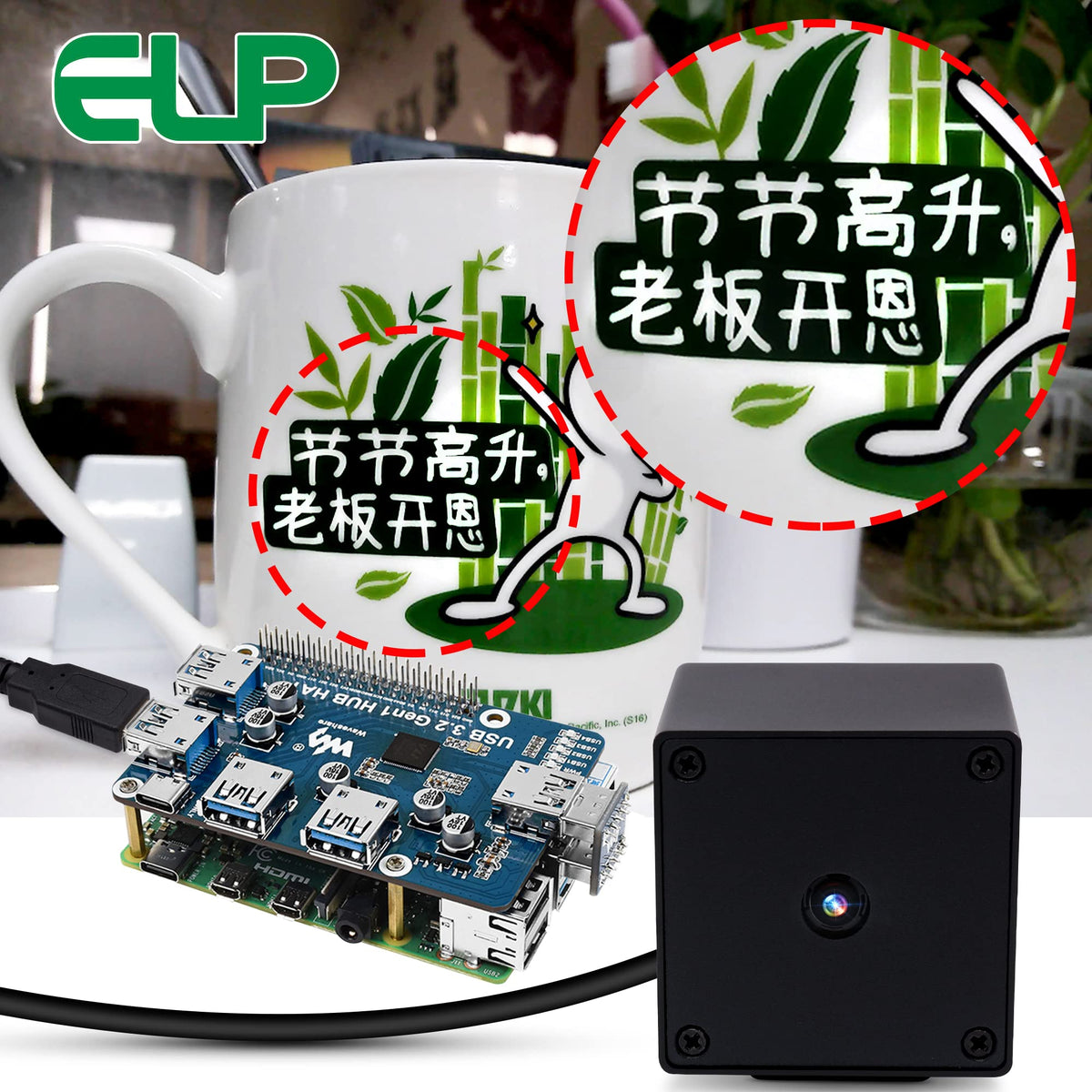

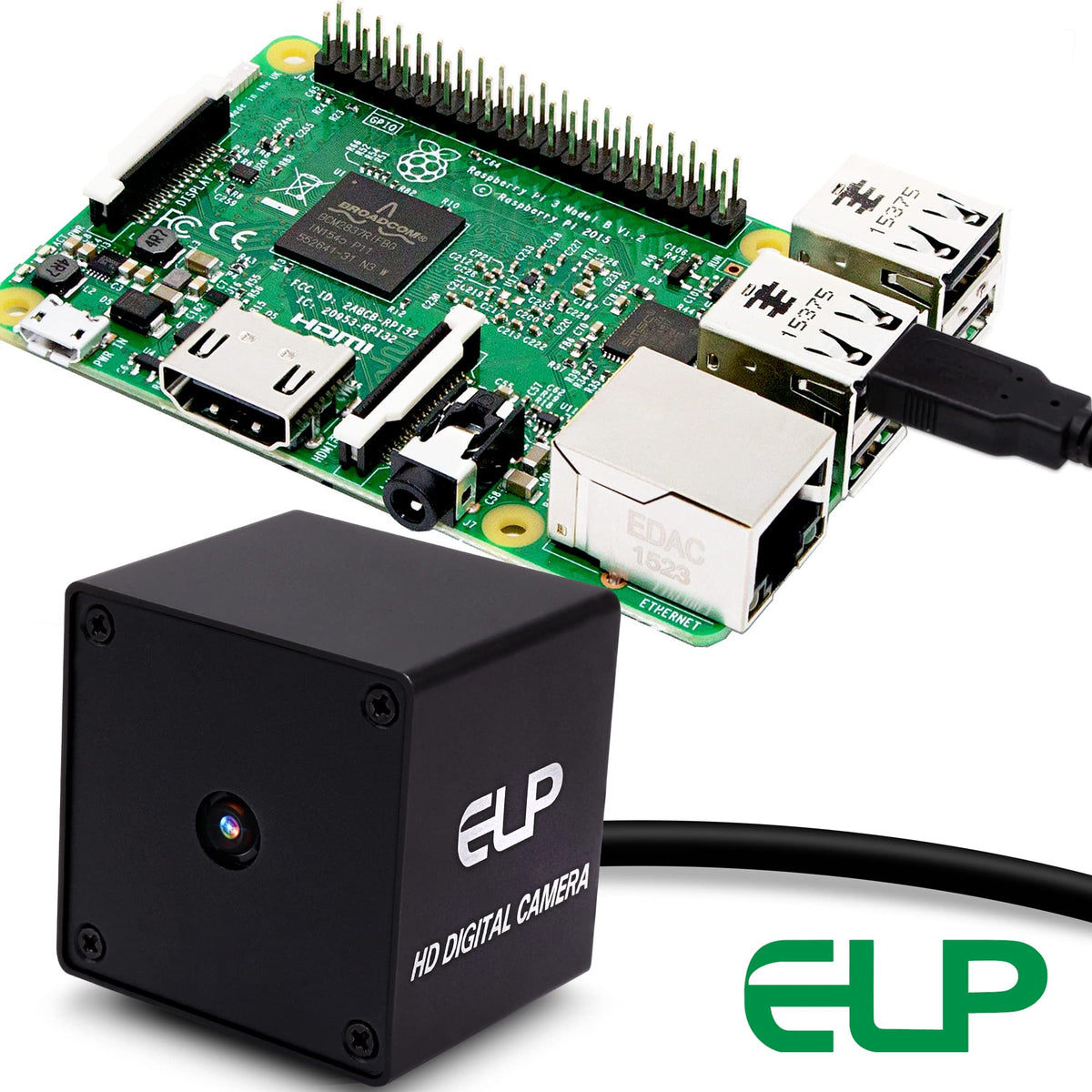

Mini size light weight usb camera for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc
Parameters:
- Sensor: 1/2 inch S5KGM1ST03-FG9
- Max. Resolution: 8000 (H) *6000 (V)
- Compression Format: MJPEG / YUY2 (YUYV)
- Resolution & Frame Rate:
- 8000x6000@5fps MJPEG/4000x3000@15fps MJPEG/3840x2160@30fps MJPEG/1920x1080@30fps MJPEG/1280x720@30fps MJPEG
- Auto Focus Speed: Fast About 200ms
- Central Definition: 1000LW/PH (Center)
- Mini Illumination: 0.3lux
- Shutter Type: Electronic rolling shutter / Frame exposure
- Connecting Port Type: USB2.0 High Speed

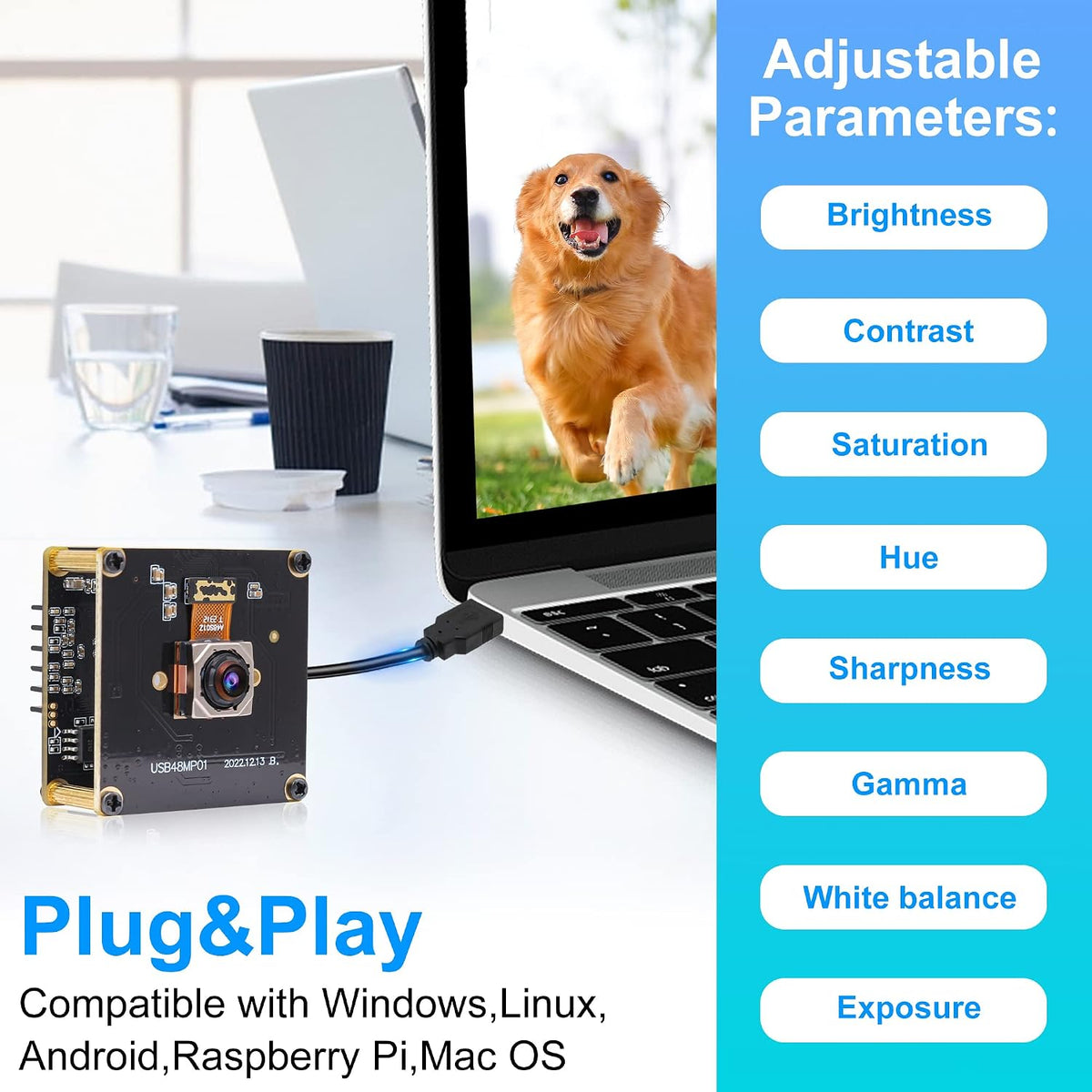

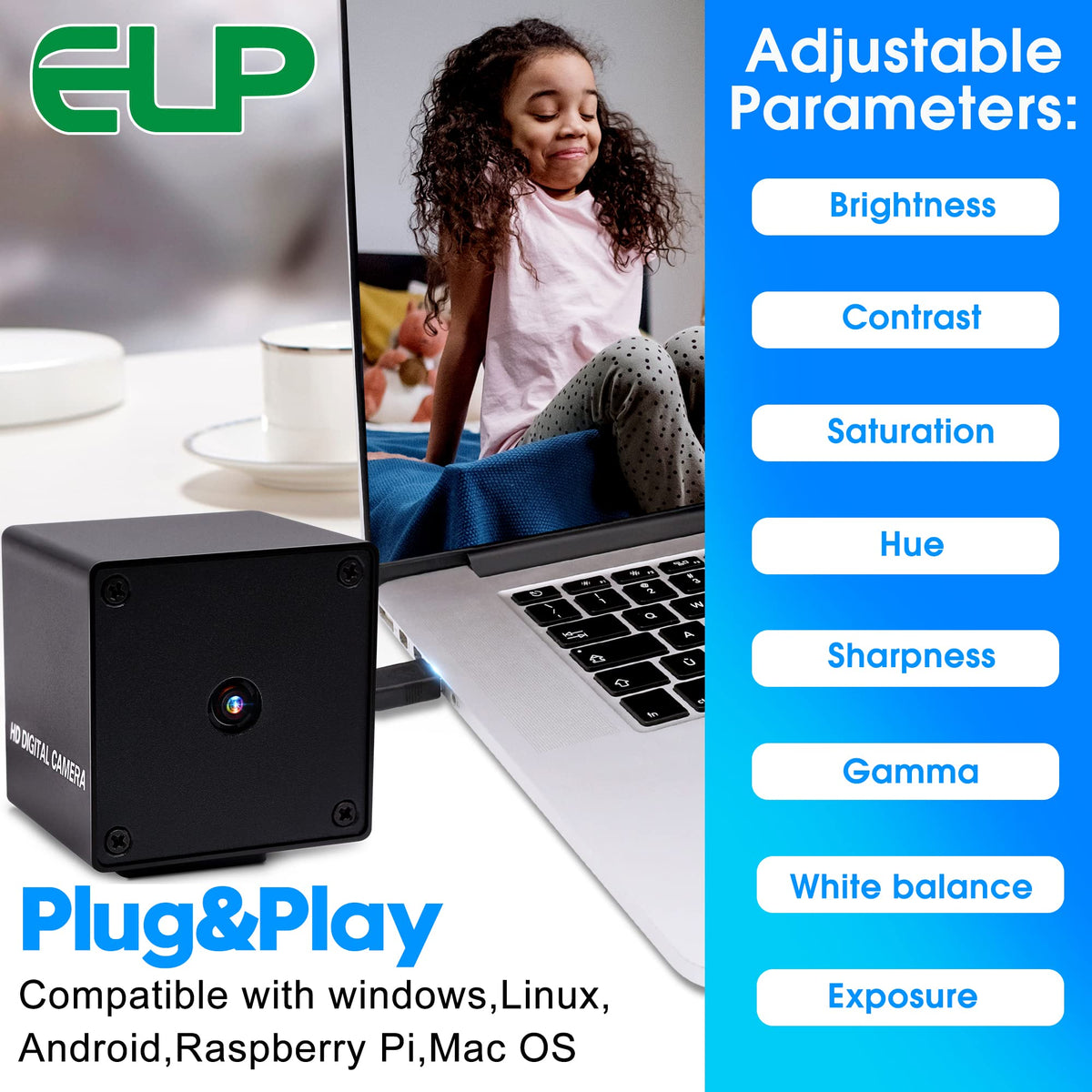

- Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure
- Power Supply: USB BUS POWER 4P-2.0mm Socket
- Operating Voltage: DC5V Working Current: 550mA- 610mA
- Storage Temperature: -20°C to 80°C Working Temperature: 0°C to 70°C
- USB Cable Standard 1m/3.3ft
Autofocus with 70degree mini size no distortion lens,mini size for PC camera interface,plug and play,free driver,UVC compliant.
200mS Fast Autofocus:
- 200ms high speed can shoot objects in close and Far distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
Super Image reality, real color reproduction, without interpolation, fast autofocus 48 megapixel usb camera, 200ms autofocus speed.

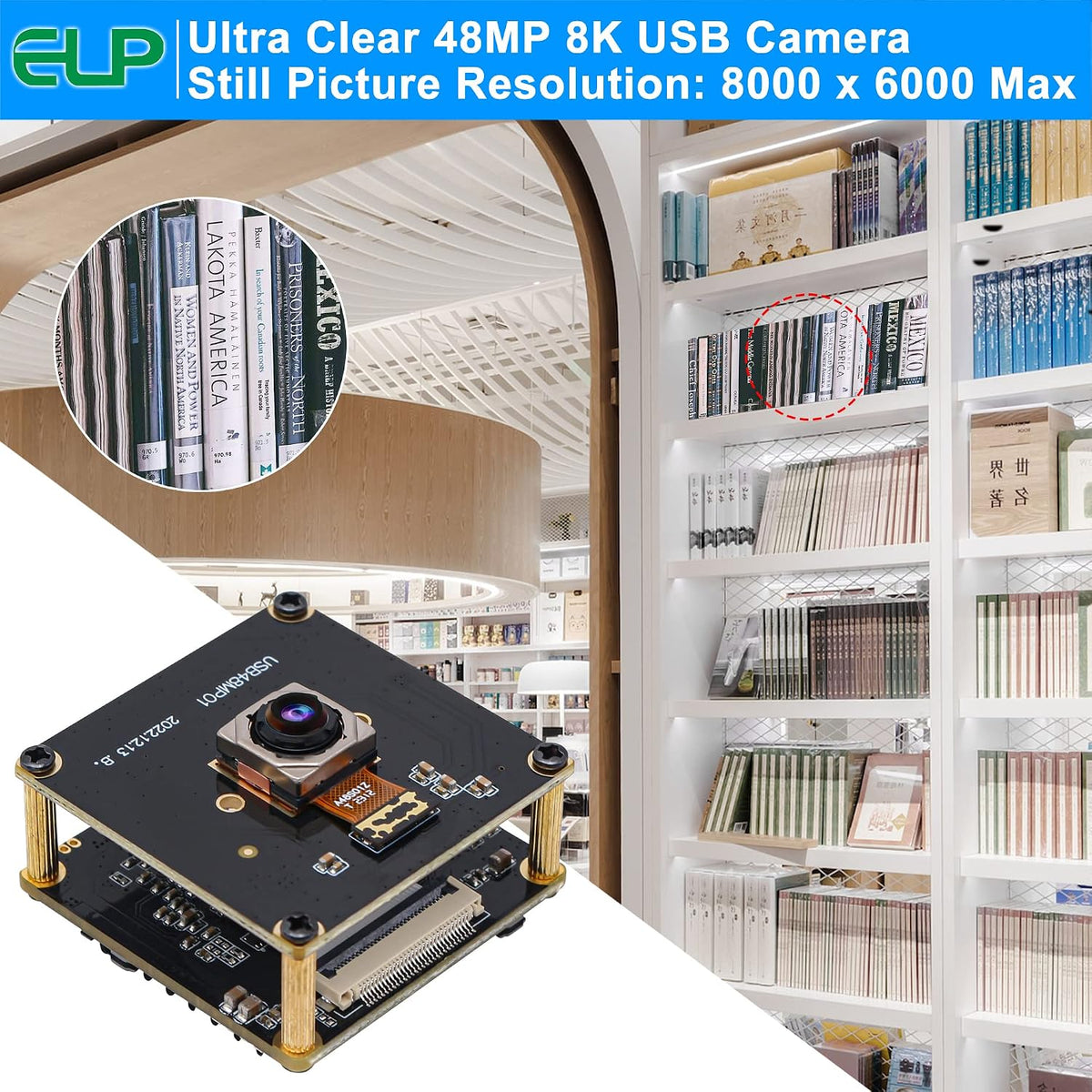

48MP Ultra Clear
Max Resolution:
- 8000(H) X 6000(V) 48 Megapixel
super Image reality, real color reproduction, show your best in every video call.

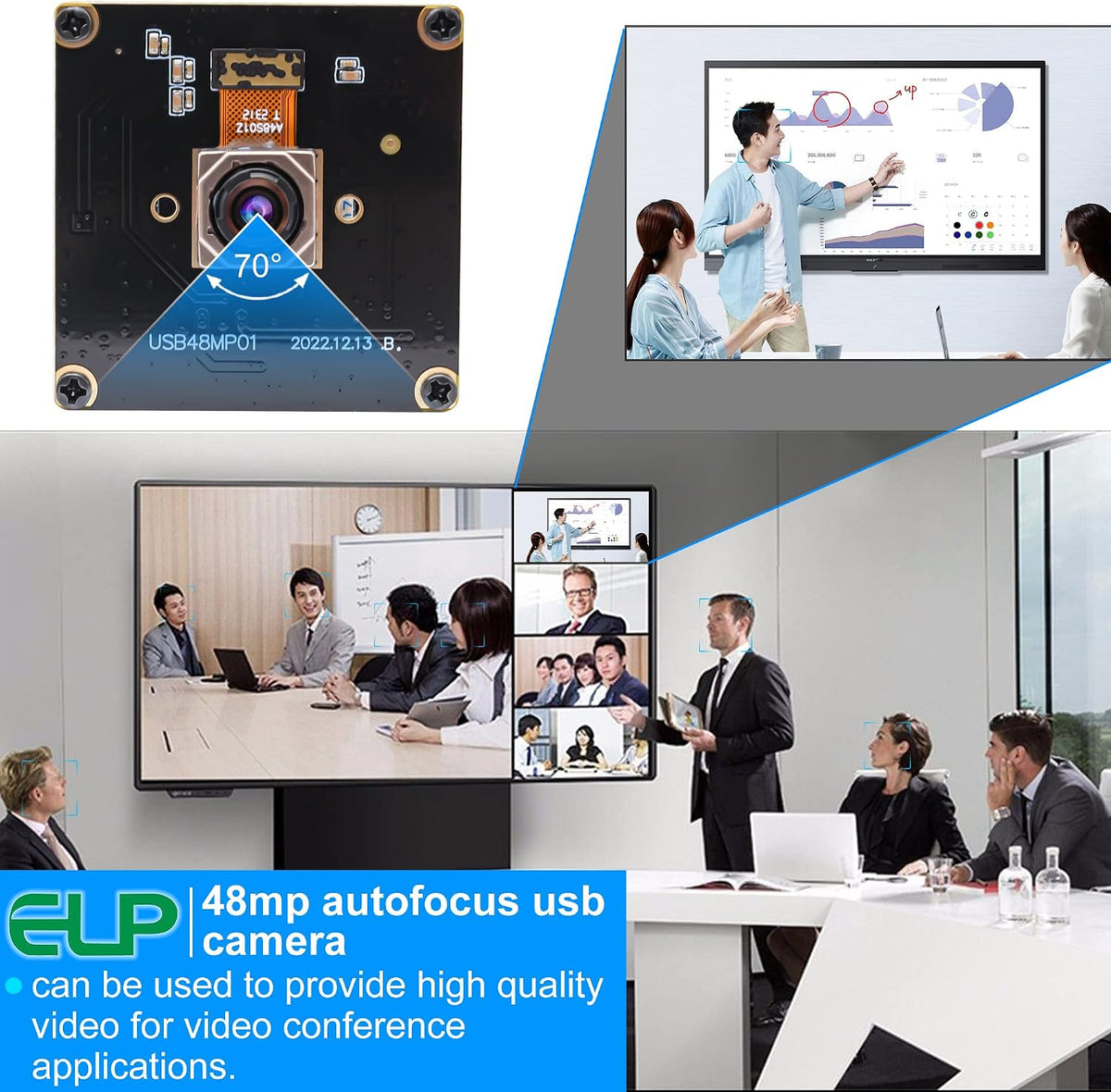

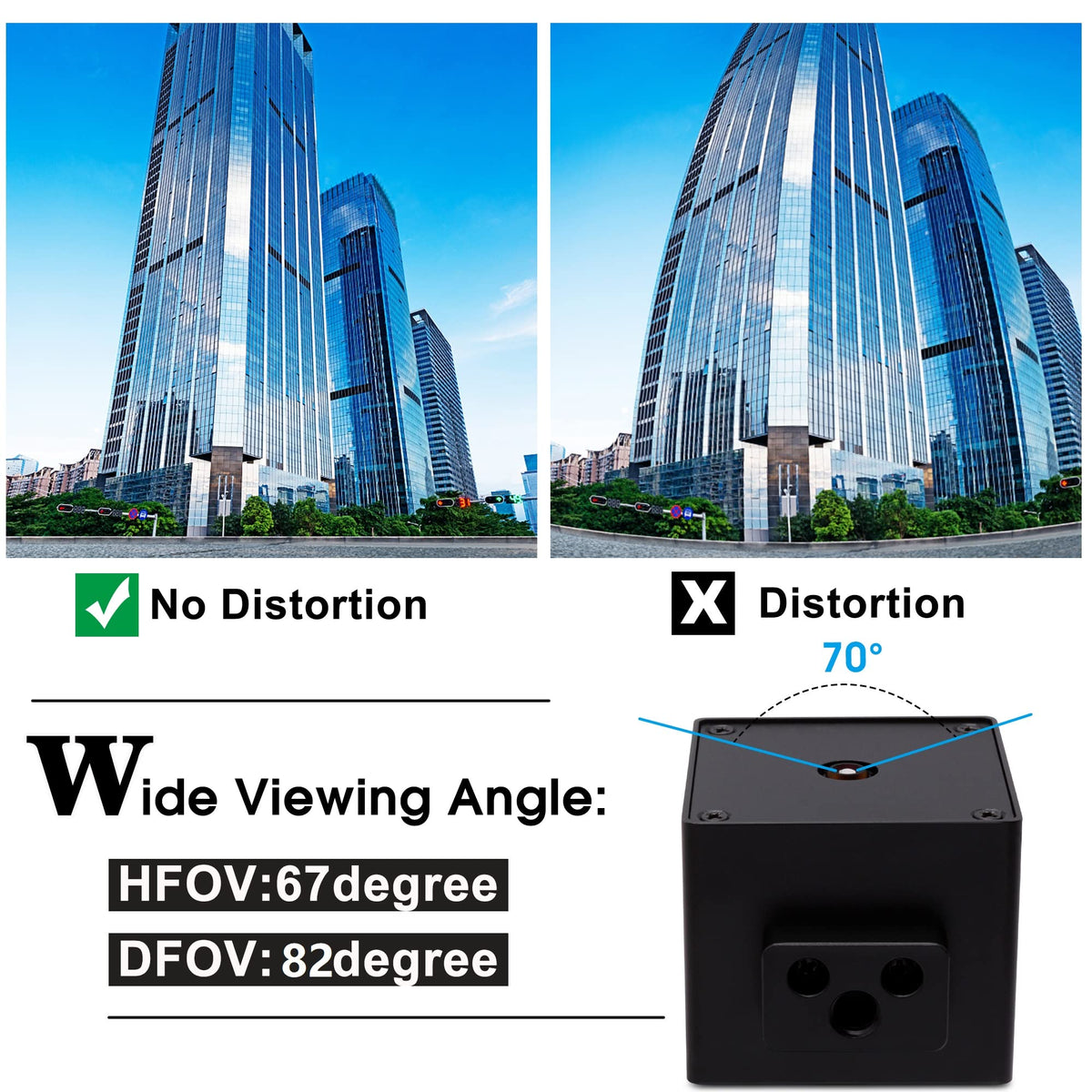

No Distortion Lens:
- Mini USB autofocus camera with none-distortion lens,wider range of view:
- HFOV: 70degree
- DFOV: 82degree
Autofocus
- shoot objects at millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.
Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...OTG Support, can be used on Android smartphone, recommended app "USB Camera".

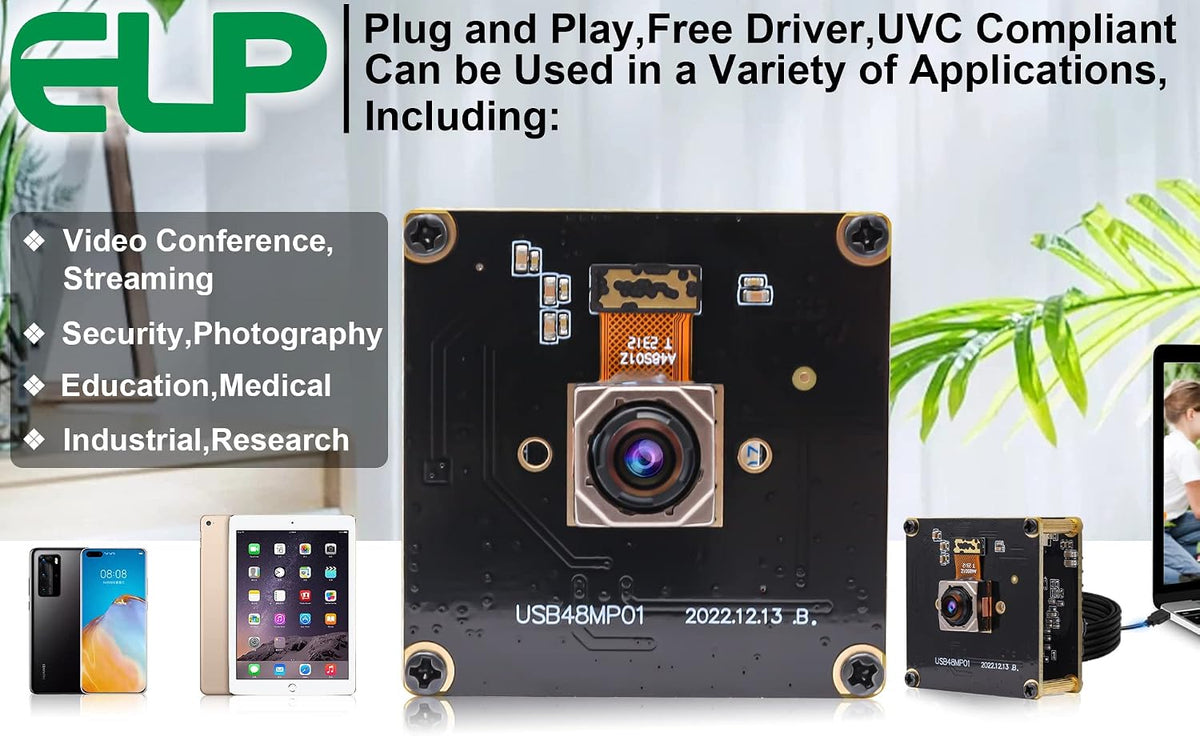

Plug and Play/Free Driver
- UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Application
- this ultra clear 48mp usb camera is well used for medical device, 3D scanner, high resolution document scan, scientific research&developmrnt, education and training, etc.
Mini Size/Light Weight
- this mini 38mmx38mm camera board can be installed in most hidden and narrow position, equipped with 1meter USB cable for wide range of usage.
Small outline and thin profile for embedded machines, mini size, light weight camera board can be installed in most hidden and narrow position.
Application:
Well used for industrial camera, video conferencing, live streaming, security system, medical device, industrial inspection, scientific research and development , education and training, high resolution document scan, high-speed photographic apparatus, photo scanner... and so on.
ELP-USB48MP01-AF70
|
ELP-USB48MP02-V100
|
ELP-USB13MAF-V75
|
ELP-USB48MP02-SL185
|
ELP-USB16MP01-L180
|
ELP-USBGS1200P01-H120
|
|
|---|---|---|---|---|---|---|
| Customer Reviews |
4
|
10
|
6
|
8
|
29
|
26
|
| Price | $135.99 | $127.99 | $97.99 | $132.99 | $76.99 | $80.99 |
| Max Resolution | 48Megapixel 8000X6000 | 48Megapixel 8000X6000 | 13Megapixel 3840X2880 | 48Megapixel 8000X6000 | 16Megapixel 4656X3496 | 2Megapixel 1920X1200 |
| Image Sensor | 1/2" S5KGM1ST03-FG9 | 1/2" IMX586 | 1/3" CMOS IMX214 | 1/2" IMX586 | 1/2.8" IMX298 | 1/2.6" Aptina AR0234 |
| Lens | 70degree autofocus mini size no distortion lens | 100degree no distortion lens | 75degree autofocus mini size no distortion lens | 1.56mm wide angle fisheys lens | 180degree fisheye lens | 120degree no distortion lens |
| Mini Illumination | 0.3LUX | 0.3LUX | 0.1LUX | 0.3LUX | 0.5LUX | 0.3LUX |
| FOV | 70°(H) | 100°(H) | 68°(D) | >180°(H) | >180°(H) | 126°(H) |
| Buil with microphone | No | No | â | No | No | No |
| USB Cable | 1M/3.3ft USB Cable | 1M/3.3ft USB Cable | 1M/3.3ft USB Cable | 3M/9.9ft USB Cable | 1M/3.3ft USB Cable | 1M/3.3ft USB Cable |
| Shutter | Rolling shutter | Rolling shutter | Rolling shutter | Rolling shutter | Rolling shutter | Global shutter |
| Compatible Device | Computer, Laptop, pc, android device, tablets, etc | Computer, Laptop, pc, android device, tablets, etc | Computer, Laptop, pc, android device, tablets, etc | Computer, Laptop, pc, android device, tablets, etc | Computer, Laptop, pc, android device, tablets, etc | Computer, Laptop, pc, android device, tablets, etc |
| Support OS | Windows, Linux with UVC Mac-OS X 10.4.8 or later ANDROID UBUNTU CHROME OS Raspberry Pi | Windows, Linux with UVC Mac-OS X 10.4.8 or later ANDROID UBUNTU CHROME OS Raspberry Pi | Windows, Linux with UVC Mac-OS X 10.4.8 or later ANDROID UBUNTU CHROME OS Raspberry Pi | Windows, Linux with UVC Mac-OS X 10.4.8 or later ANDROID UBUNTU CHROME OS Raspberry Pi | Windows, Linux with UVC Mac-OS X 10.4.8 or later ANDROID UBUNTU CHROME OS Raspberry Pi | Windows, Linux with UVC Mac-OS X 10.4.8 or later ANDROID UBUNTU CHROME OS Raspberry Pi |
- Ultra HD 8000X6000 High Resolution 48MP USB Camera.
- Fast autofocus 48 megapixel usb camera, 200ms autofocus speed.
- Wide angle no distortion lens, HFOV about 70 degree, DFOV about 82 degree.
- With industrial grade high quality sensor S5KGM1ST04-FG9.
- Super Image reality, real color reproduction, without interpolation.
- UVC Free Driver , Plug and Play, easily used on different systems.
- Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...
| Brand | ELP |
| Photo Sensor Technology | CMOS |
| Video Capture Resolution | 48mp, 6000p |
| Maximum Focal Length | 50 millimeters |
| Maximum Aperture | 1.79 f_stop |
| Flash Memory Type | PC |
| Video Capture Format | MJPEG/YUY2 |
| Screen Size | 14 inches |
| Connectivity Technology | USB |
| Color | USB Camera Module |
